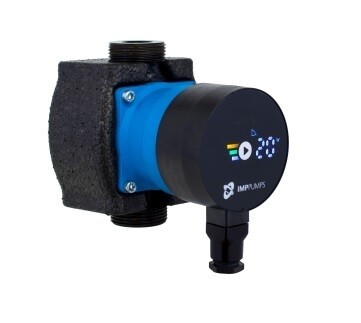

IMP PUMPS NMT Plus 25/60 Circulation pump

Electronically controlled high efficiency pumps for heating, air conditioning and cooling. Circulation pumps NMT (New Motor Technology) are used to move liquid media in hot water heating, air conditioning and ventilation systems. They are designed as one or two variable speed pumping units, where the speed is regulated by an electronic device. The pump constantly measures pressure and flow and adjusts the speed according to the set pump mode.

Electronically controlled wet circulation pump: For all heating systems, air conditioning, closed cooling circuits and industrial systems, used according to VDI 2035.

Product characteristic curves

• ECM permanent magnet technology with energy efficiency

• 3 proportional pressure working modes

• 3 fixed speed modes

• built-in electrical protection

• easy installation and quiet operation

• automatic venting

• quality and compact construction for durability

Technical data

Maximum pressure (Hmax): 5.76m

Maximum consumption (Qmax): 3.31 m3/h

Efficiency: 38%

EEI: 0.17

Noise: ≤43 dB(A)

Power supply: 230V, alternating current 50 Hz

Motor power: 36 W

Revolutions: 4100 rpm

DN: 25 mm

Length: 130 mm

Connection: External thread G1½”

In the package: pump, gaskets

Manufacturer: IMP PUMPS (Slovenia)
